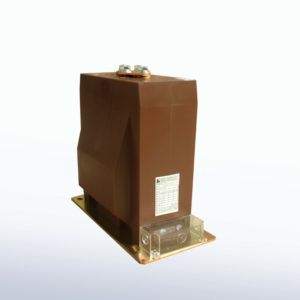

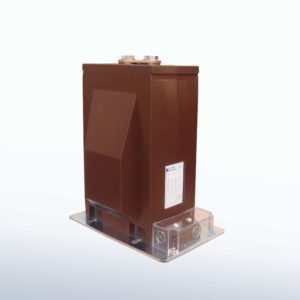

VKPE-36.
Insulation Voltage 36kV.
Phase-to-Earth Connection.

HV Voltage transformer for measuring and/or protecting up to 36 kV, used for measurement instruments, meters, relays and other similar devices. Designed to be used indoors.

The primary winding is occluded in class E epoxy resin, the magnetic circuit and the secondary winding are outside the resin enclosure.

Because of this construction there is no risk of projection of fragments.

The transformer VKPE-36 is a phase-to-earth transformer; that is, a single-phase transformer, used to keep one of the ends of the primary winding directly connected to earth.

The VKPE transformers family has been designed taking into account the Environment as no oils or fluorinated gases are used as insulating material.

It is mechanically resistant and damp-proof, oil-proof, dust-proof and resists most chemical products.

Manufactured in accordance with IEC 61869:1 and IEC 61869:3 standards.
